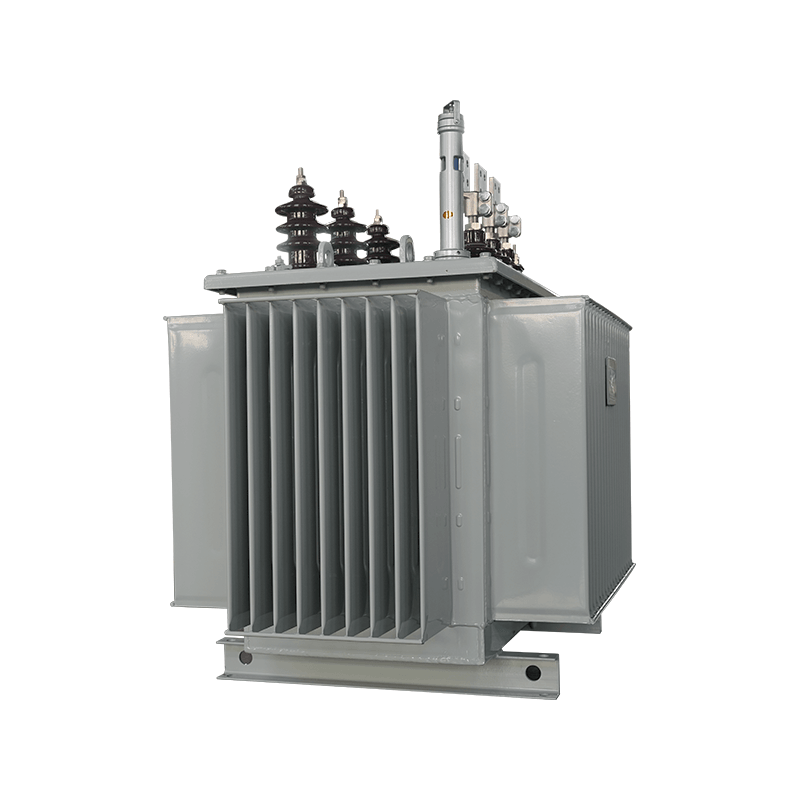

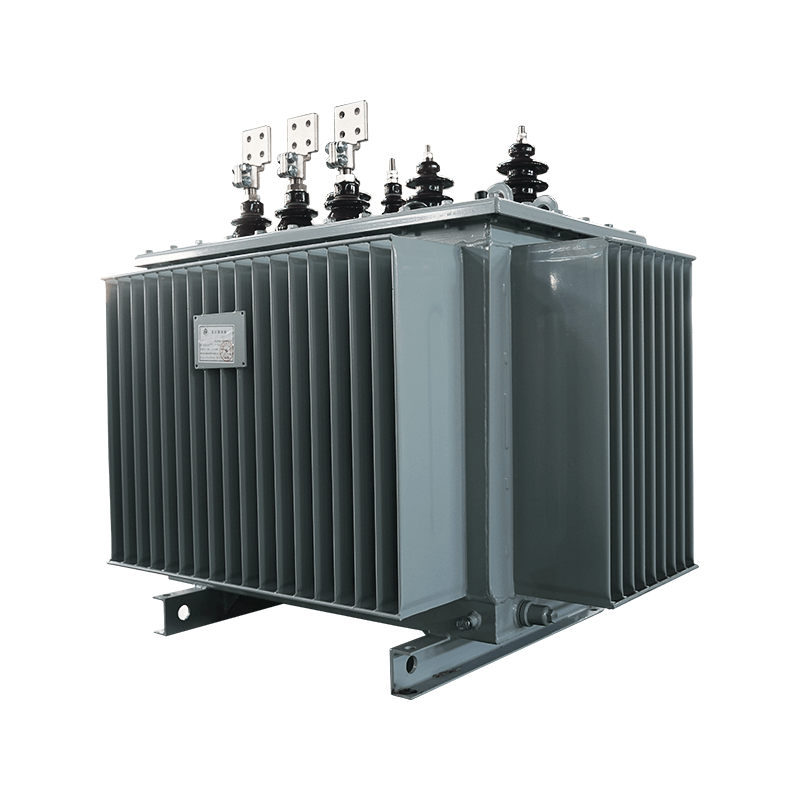

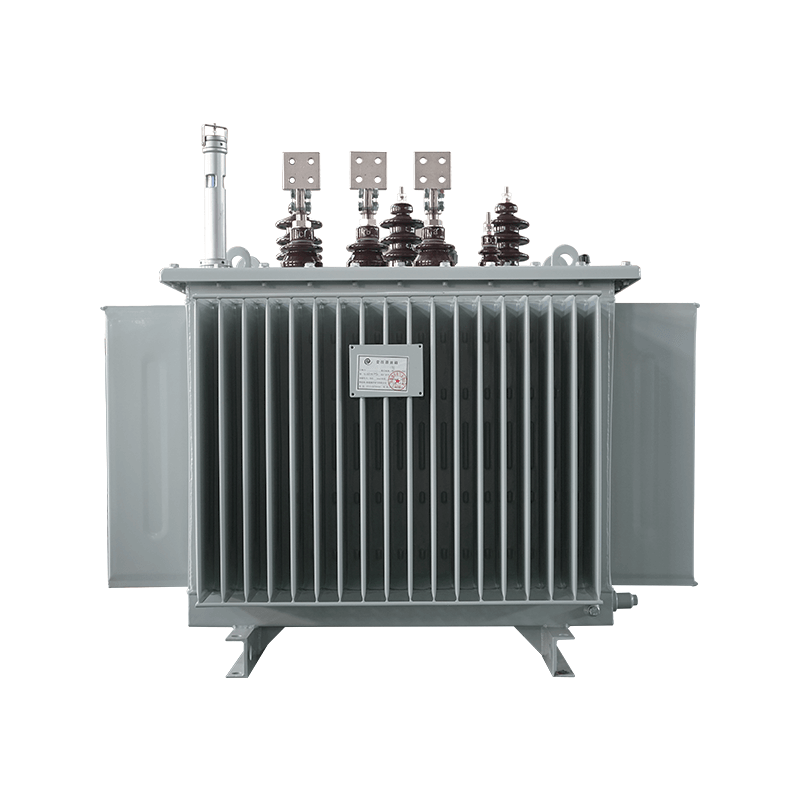

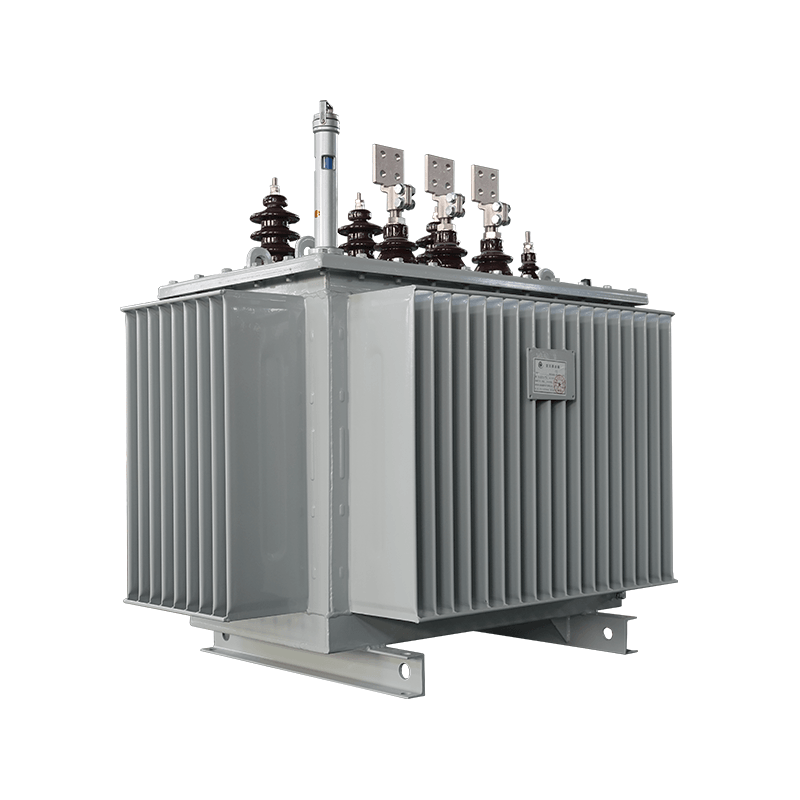

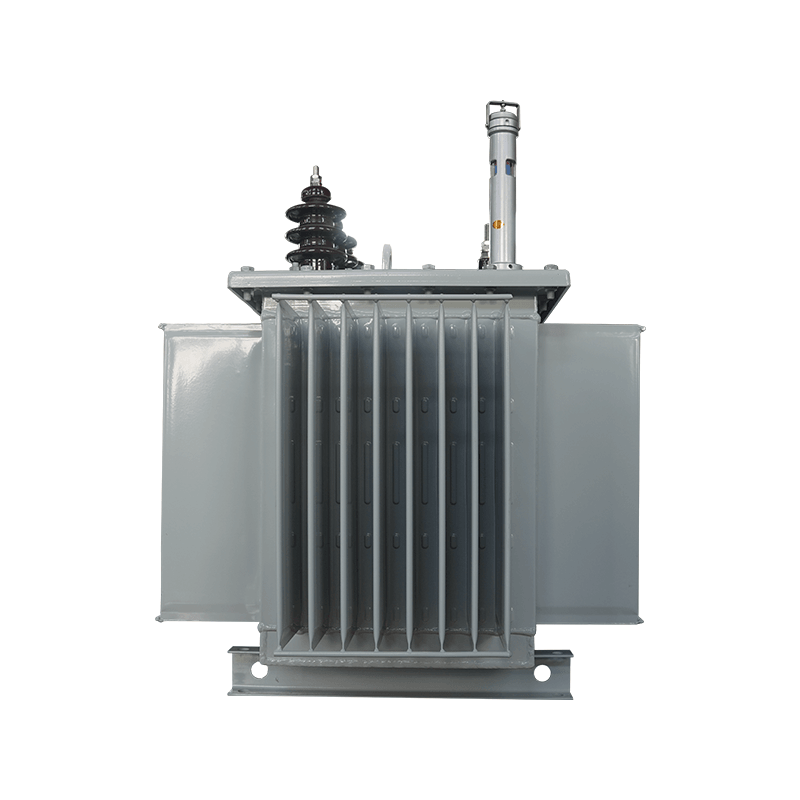

S13(22)-M. ZT Distribution Transformer On-Load Automatic Tuning Capacitor

Contact Us
PREV：SH15-M Sealed Non-Crystalline Alloy Power Transformer
NEXT：S13~S22 Series 10kV-35kV Low-loss And Non-exciting Regulation Oil-immersed Power Transformer
  • Description
  • The S13(22)-M. ZT distribution transformer with an on-load automatic tuning capacitor is equipped with a controller that can automatically adjust its rated capacity based on user load. This is achieved through a specialized load capacity regulating switch that can switch between two different transformer capacities, all while the transformer remains in operation without a power outage. This automatic tuning system ensures that the transformer adjusts its capacity as needed to meet the varying load requirements during its operation.

Related Products

About Us
Nantong Shengyang Electric Co., Ltd.
Nantong Shengyang Electric Co., Ltd.., is a comprehensive enterprise, that combines research, manufacture, sales, and service as a whole; has offices in Beijing, Shanghai, and Hong Kong; and has built up a complete service system. Our production base is located in Shuanglou industrial zone, Haian City, Jiangsu province which lies north of the beautiful and rich Yangtze River delta, east of the Yellow Sea, south of Yangtze, and also close to Nantong, Yangzhou, and Taizhou airports. Xinchang Railway, Ningqi Railway, G15 Shenhai Highway, and Qiyang Highway intersect here. 204 and 308 national ways are passing through our factory. All of the above prove that we have obvious regional advantages that are suitable for water, land, and air transportation.
We are a professional China ODM S13(22)-M. ZT Distribution Transformer On-Load Automatic Tuning Capacitor manufacturers and S13(22)-M. ZT Distribution Transformer On-Load Automatic Tuning Capacitor suppliers, Our factory specializes in the manufacture of power transformers, rectifier transformers, Box-type transformer substations, wind power transformers, and its complete sets of products. We occupiers an area of 26500m2, of which the construction area is 13800m2; the fixed investment is RMB 35,800,000; We have many main product equipment and full sets of inspection equipment, such as vacuum drying system, automatic vacuum casting system, corrugated oil tank product line, slitting line, horizontal cutting line and automatic foil winding machine and son on. Our technology is strong, the manufacture process is advanced, and equipment and testing modes are complete.
Certificate Of Honor
  • Enterprise Legal Person Business License, Tax Registration Certificate, Organization Code Certificate (Three Certificates In One)
  • Account Opening Permit
  • A 10kv Transformer With Safe Closing
  • The Invention Relates To A Photovoltaic Power Generation Device
  • The Utility Model Relates To An Automatic Grounding Conductive Device For Transformer Leakage Current
  • The Invention Relates To A Noise Reduction And Cooling Dry Type Transformer
  • The Utility Model Relates To A Transformer Sheet Type Heat Dissipation Device
  • The Utility Model Relates To A Dry Transformer Fan Assembly Structure
  • The Utility Model Relates To A Low Pressure Foil Coil Head Copper Bar Fixed Structure
  • The Utility Model Relates To A Multifunctional Power Cabinet
  • The Utility Model Relates To A Complete Set Of Switchgear Having A Waterproof Structure
  • The Utility Model Relates To A Switch Cabinet For Overheat Protection With Automatic Cooling And Cooling
News
S13(22)-M. ZT Distribution Transformer On-Load Automatic Tuning Capacitor Industry knowledge
What are the key benefits of integrating On-Load Automatic Tuning Capacitors with distribution transformers?

The integration of On-Load Automatic Tuning Capacitors with distribution transformers provides several key benefits, enhancing the overall performance and efficiency of the power distribution system. Here are some of the primary advantages:
Improved Power Factor: The primary function of On-Load Automatic Tuning Capacitors is to correct the power factor of distribution transformers. By supplying reactive power to offset the lagging reactive power in the system, these capacitors bring the power factor closer to unity (1.0). A higher power factor reduces losses and allows for more efficient utilization of electrical power.
Enhanced Energy Efficiency: Improved power factor leads to enhanced energy efficiency. Capacitor banks help reduce the amount of reactive power circulating in the system, thereby minimizing energy losses and optimizing the use of electrical power.
Voltage Regulation: On-Load Automatic Tuning Capacitors assist in maintaining stable voltage levels in the distribution system. By compensating for reactive power and reducing voltage drop, these capacitors contribute to better voltage regulation, ensuring a consistent and reliable power supply.
Reduced Line Losses: The correction of power factor and voltage regulation provided by tuning capacitors helps to minimize line losses in the distribution network. Lower line losses result in more efficient power transmission and distribution.
Optimized Transformer Loading: On-Load Automatic Tuning Capacitors adapt to varying load conditions, optimizing the power factor correction based on the transformer's actual load. This adaptability ensures that the capacitors provide the right amount of reactive power support, regardless of changes in load.
Extended Equipment Lifespan: The reduction of reactive power and associated voltage fluctuations can contribute to a more stable operating environment for distribution transformers and associated equipment. This stability can lead to a longer lifespan for transformers and other components in the power distribution system.
Compliance with Standards: Many power distribution systems have standards and regulations regarding power factor limits. Integrating On-Load Automatic Tuning Capacitors helps ensure compliance with these standards, avoiding penalties and optimizing the system's performance.
Cost Savings: The improved efficiency and reduced losses achieved through the integration of tuning capacitors can result in cost savings over the long term. These savings may be realized through lower energy bills, reduced maintenance costs, and an extended lifespan for equipment.
Environmental Impact: By reducing energy losses and improving efficiency, On-Load Automatic Tuning Capacitors contribute to a more sustainable and environmentally friendly power distribution system.
In summary, integrating On-Load Automatic Tuning Capacitors with distribution transformers provides a range of benefits, including improved power factor, enhanced energy efficiency, voltage regulation, and cost savings, ultimately leading to a more reliable and sustainable power distribution infrastructure.
