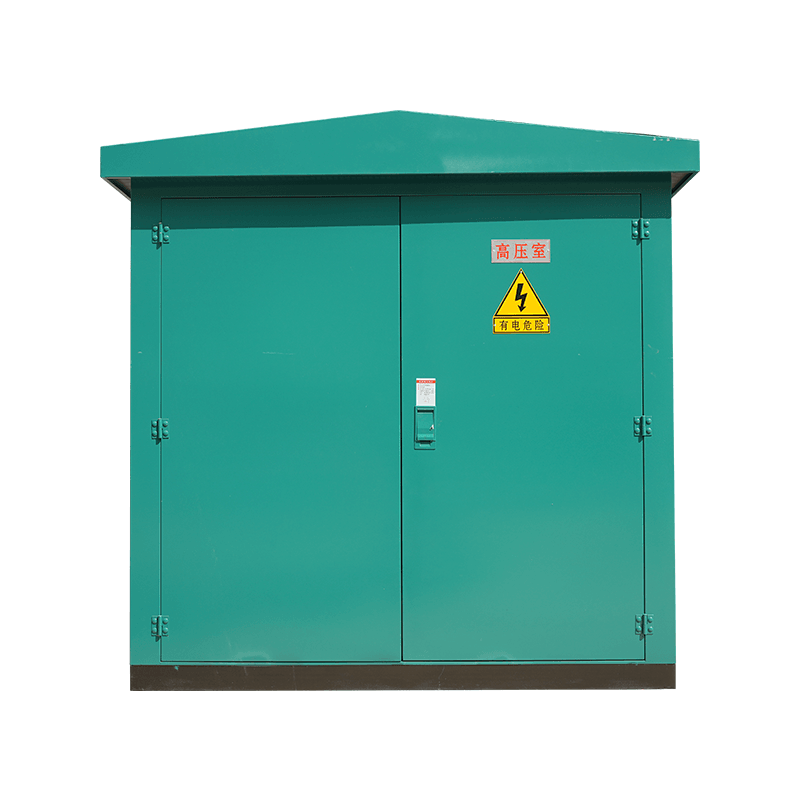

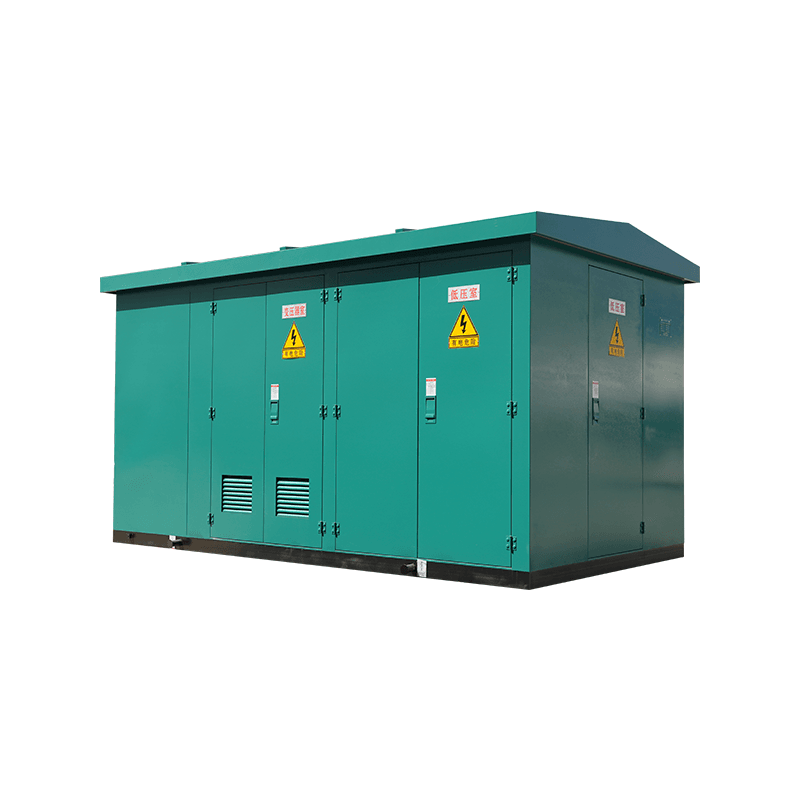

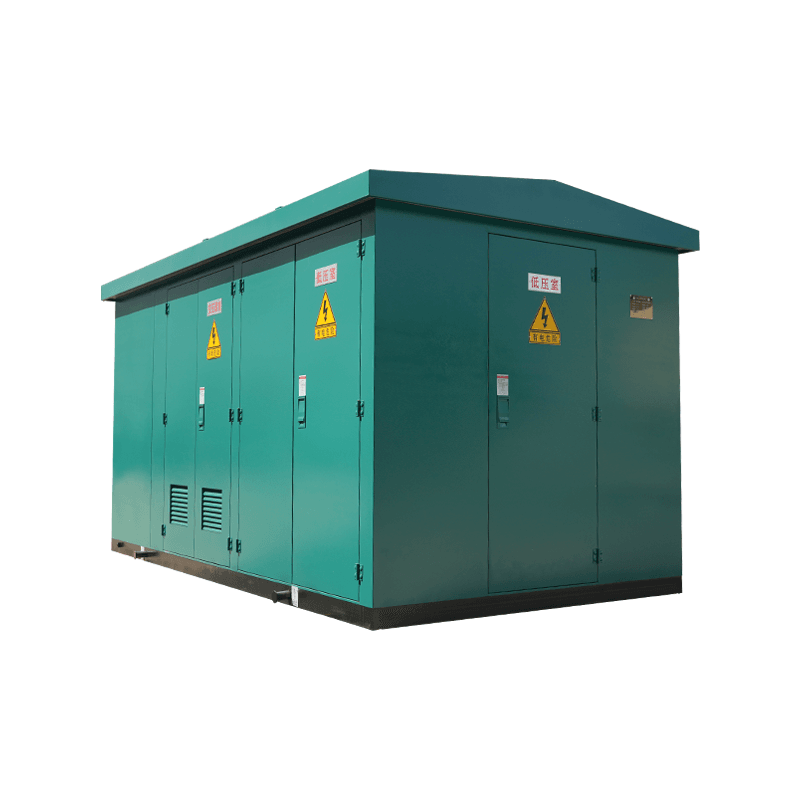

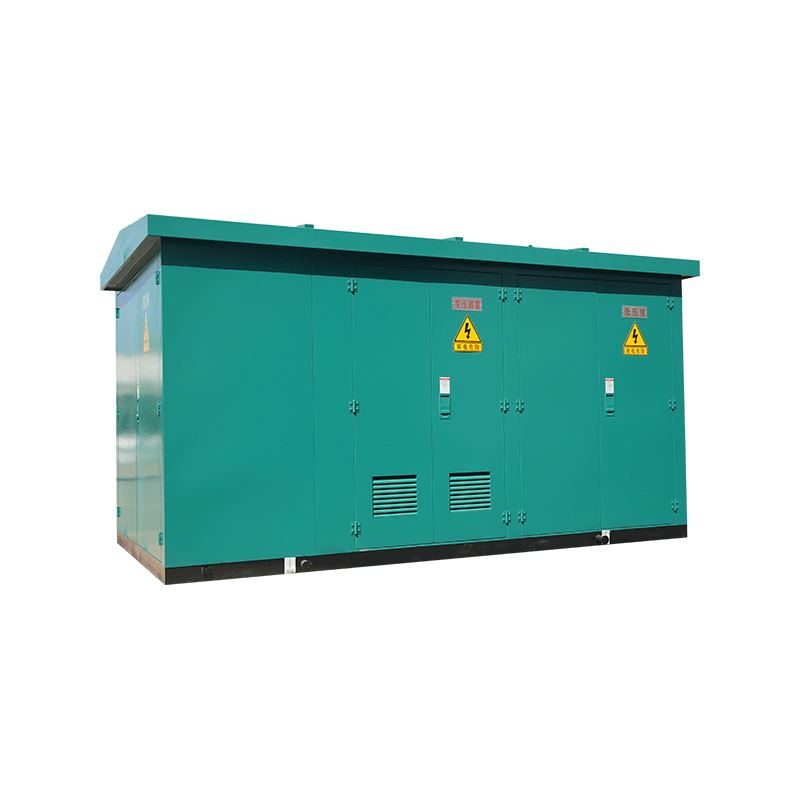

YB-PRE-Compact substations (European Box Variable)

Core Components: What Are the Fundamental Elements Inside European-Style Box Transformers?

The core components inside European-style box transformers play a crucial role in their functionality and performance. Here's a breakdown of the fundamental elements found inside these transformers:
Transformer Windings:
Primary Windings: These are the input windings connected to the power source.
Secondary Windings: These windings are responsible for delivering the transformed voltage to the load.
Magnetic Core:
Laminated Iron Core: The core is typically made of laminated iron sheets to reduce eddy current losses and improve efficiency.
Core Structure: The core provides a low-reluctance path for the magnetic flux generated by the windings, facilitating efficient energy transfer.
Insulation Materials:
Insulation between Windings: Various insulating materials are used to prevent electrical breakdown between primary and secondary windings.
Insulation for Core: Insulating materials may be employed to separate the core from the windings and prevent short circuits.
Cooling Systems:
Cooling Fans or Vents: In some designs, cooling fans or ventilation systems are integrated to dissipate heat generated during operation, ensuring optimal temperature levels.
Cooling Fluids: In liquid-cooled transformers, cooling fluids circulate to transfer heat away from the core and windings.
Voltage Regulation Components:
Tap Changers: Variable taps on the transformer windings allow for adjustments to the turns ratio, enabling voltage regulation.
Voltage Regulators: Automatic voltage regulation systems may be included to maintain a constant output voltage despite variations in the input voltage.
Safety Features:
Overcurrent Protection: Fuses or circuit breakers may be incorporated to protect against overcurrent conditions.
Temperature Sensors: Sensors monitor the temperature of the transformer, triggering protective measures if it exceeds safe levels.
Control and Monitoring Systems:
Control Panels: These panels may include manual controls or programmable settings for adjusting transformer parameters.
Monitoring Devices: Instruments and sensors are used to measure voltage, current, and temperature, providing real-time data for operational monitoring.
Enclosure:
Metal Enclosure: The outer casing of the transformer is typically made of metal for durability and protection against environmental factors.
Access Panels: Some transformers have accessible panels for maintenance and inspection purposes.
Grounding Systems:
Grounding Connections: Transformers are equipped with grounding systems to ensure safety and provide a path for fault currents.
Nameplate and Rating Information:
Rating Plate: This plate provides essential information such as the transformer's rated power, voltage, current, and other specifications.
Understanding these core components provides insight into the design and functionality of European-style box transformers, highlighting their essential features for efficient and reliable power transformation.
