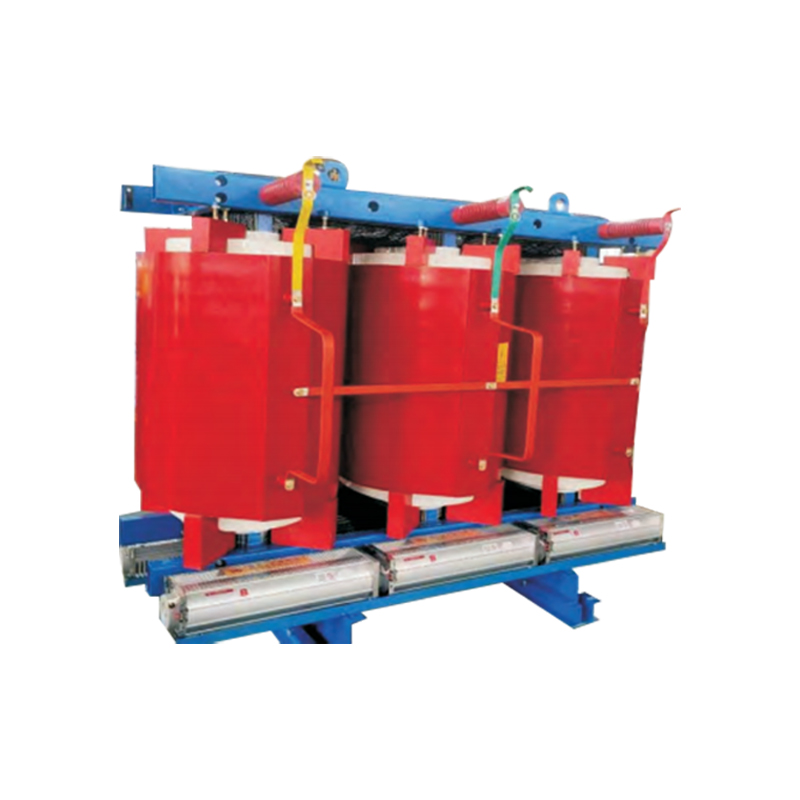

THREE PHASE GROUNDING TRANSFORMER

Contact Us
PREV：SINGLE-PHASE GROUNDING TRANSFORMER
NEXT：PHASE-SHIFT RECTIFIER TRANSFORMER
  • Description
  • This type of transformer uses Z-type wiring (or zigzag wiring). The key difference between this transformer and a standard one is that each phase coil is divided into two groups and wound in reverse on the magnetic core of that phase. The advantage of this connection is that the zero-sequence magnetic flux can flow along the magnetic core, whereas in a regular transformer, the zero-sequence magnetic flux flows through the magnetic leakage path. As a result, the zero-sequence impedance of a Z-type grounding transformer is very low, approximately 10 ohms, whereas in a typical transformer, it is significantly higher. According to regulations, the capacity of a standard transformer with an arc suppression coil should not exceed 20% of the transformer's capacity. The Z-type transformer can be equipped with an arc suppression coil with a capacity of 90% to 100%.
    Furthermore, in addition to the arc suppression coil, the grounding transformer can also be equipped with a secondary load, which can serve as a substitute for a station transformer, resulting in cost savings.

Related Products

About Us
Nantong Shengyang Electric Co., Ltd.
Nantong Shengyang Electric Co., Ltd.., is a comprehensive enterprise, that combines research, manufacture, sales, and service as a whole; has offices in Beijing, Shanghai, and Hong Kong; and has built up a complete service system. Our production base is located in Shuanglou industrial zone, Haian City, Jiangsu province which lies north of the beautiful and rich Yangtze River delta, east of the Yellow Sea, south of Yangtze, and also close to Nantong, Yangzhou, and Taizhou airports. Xinchang Railway, Ningqi Railway, G15 Shenhai Highway, and Qiyang Highway intersect here. 204 and 308 national ways are passing through our factory. All of the above prove that we have obvious regional advantages that are suitable for water, land, and air transportation.
We are a professional China ODM THREE PHASE GROUNDING TRANSFORMER manufacturers and THREE PHASE GROUNDING TRANSFORMER suppliers, Our factory specializes in the manufacture of power transformers, rectifier transformers, Box-type transformer substations, wind power transformers, and its complete sets of products. We occupiers an area of 26500m2, of which the construction area is 13800m2; the fixed investment is RMB 35,800,000; We have many main product equipment and full sets of inspection equipment, such as vacuum drying system, automatic vacuum casting system, corrugated oil tank product line, slitting line, horizontal cutting line and automatic foil winding machine and son on. Our technology is strong, the manufacture process is advanced, and equipment and testing modes are complete.
Certificate Of Honor
  • Enterprise Legal Person Business License, Tax Registration Certificate, Organization Code Certificate (Three Certificates In One)
  • Account Opening Permit
  • A 10kv Transformer With Safe Closing
  • The Invention Relates To A Photovoltaic Power Generation Device
  • The Utility Model Relates To An Automatic Grounding Conductive Device For Transformer Leakage Current
  • The Invention Relates To A Noise Reduction And Cooling Dry Type Transformer
  • The Utility Model Relates To A Transformer Sheet Type Heat Dissipation Device
  • The Utility Model Relates To A Dry Transformer Fan Assembly Structure
  • The Utility Model Relates To A Low Pressure Foil Coil Head Copper Bar Fixed Structure
  • The Utility Model Relates To A Multifunctional Power Cabinet
  • The Utility Model Relates To A Complete Set Of Switchgear Having A Waterproof Structure
  • The Utility Model Relates To A Switch Cabinet For Overheat Protection With Automatic Cooling And Cooling
News
THREE PHASE GROUNDING TRANSFORMER Industry knowledge
How does a three-phase grounding transformer enhance electrical system safety in industrial environments?

A three-phase grounding transformer plays a crucial role in enhancing electrical system safety in industrial environments through several key mechanisms:
Ground Fault Protection: One of the primary functions of a grounding transformer is to provide a path for fault currents to ground in the event of a ground fault. By creating a low-impedance path to ground, the transformer helps to quickly detect and isolate faults, reducing the risk of electrical fires and equipment damage.
Limiting Voltage Rise during Faults: In the event of a ground fault, a grounding transformer limits the rise in voltage on the un-faulted phases. This prevents overvoltages that could otherwise occur and damage connected equipment, ensuring the safety and integrity of the electrical system.
Stabilizing Voltage Levels: The grounding transformer helps stabilize voltage levels by providing a reference point to ground. This is essential in preventing voltage fluctuations that could adversely affect sensitive equipment and disrupt industrial processes.
Reducing Touch Voltage: Touch voltage, which is the potential difference between a grounded surface and a person's feet during a fault, can be hazardous. The grounding transformer helps to minimize touch voltage, reducing the risk of electric shock to personnel in the vicinity of the fault.
Equipment Protection: By providing a low-impedance path to ground, the grounding transformer helps protect electrical equipment and insulation from sustained overvoltages during fault conditions. This safeguards the overall health and longevity of the connected industrial equipment.
Ensuring System Stability: Grounding transformers contribute to the stability of the electrical system by preventing excessive voltage swings and maintaining a balanced system during fault conditions. This is critical for avoiding cascading failures and ensuring the continuous operation of the industrial facility.
Compliance with Safety Standards: Many industrial safety standards and regulations mandate the use of grounding transformers to mitigate the risks associated with ground faults. Employing these transformers ensures compliance with safety codes and regulations, reducing the likelihood of accidents and injuries.
Facilitating Fault Location: Grounding transformers assist in locating and isolating faults by creating distinct current paths during a fault condition. This aids maintenance personnel in quickly identifying and resolving issues, minimizing downtime and improving overall system reliability.
In summary, a three-phase grounding transformer enhances electrical system safety in industrial environments by providing effective fault current paths, limiting voltage rise, stabilizing the system, and ensuring compliance with safety standards. These measures collectively contribute to a safer and more reliable operation of the industrial electrical infrastructure.
